EVO-X2 AI Mini PC – AMD Ryzen™ AI Max+ 395
Price range: $999.00 through $1,499.00
The EVO-X2 redefines what’s possible for AI-enabled mini PCs, supporting local inference of large AI models. With its powerful heterogeneous computing architecture, it delivers exceptional AI performance, outperforming the NVIDIA GeForce RTX 4090 by 2.2x in LM Studio benchmarks while consuming significantly less power. Experience fast, seamless performance for natural language processing, text generation, intelligent Q&A, image recognition, and AI-driven artwork.
Key Features:
- AMD Ryzen™ AI Max+ 395 Processor: Equipped with 16 cores and 32 threads based on the Zen 5 architecture, boosting up to 5.1 GHz. Manufactured on TSMC’s 4nm FinFET process with 16 MB L2 Cache and 64 MB L3 Cache for unmatched parallel processing.
- Radeon™ 8060S Graphics: Integrated 40-core RDNA 3.5 architecture GPU delivers exceptional gaming performance, comparable to a dedicated RTX 4070.
- XDNA 2 AI NPU: Dedicated AI NPU with 50 TOPS, contributing to an overall processor AI performance of up to 126 TOPS, enabling local inference of large language models (LLMs).
- High-Speed LPDDR5X Memory: Onboard LPDDR5X RAM with options for 64GB or 128GB, running at 8000MHz for rapid data processing (non-upgradeable).
- Blazing-Fast PCIe 4.0 SSD Storage: Comes with 1TB, 2TB or 4TB PCIe 4.0 M.2 2280 SSD, and supports dual M.2 2280 slots for internal expansion up to a total of 16TB.
- Advanced Cooling System: Features the “Arctic” cooling system with dual turbine fans and a vapor chamber, ensuring stable performance under peak loads (up to 140W TDP).
- Comprehensive Connectivity: Dual USB4.0 (Type-C) ports, HDMI 2.1, DisplayPort 1.4, 2.5GbE LAN, WiFi 7 (RZ717 MT7925), and Bluetooth 5.4 for versatile peripheral and network connections.
- Quad 4K Display Support: Supports maximum resolution of 7680×4320 @ 60Hz across HDMI, DisplayPort, and USB4.
- Compact and Premium Design: Crafted from floating recycled aluminum with a space-optimized vertical stacking structure for a compact form factor (193 mm x 185.8 mm x 77 mm).
- Windows 11 Pro: Comes pre-installed with Windows 11 Pro for a powerful and secure operating environment.
Technical Specifications:
| Processor (CPU) | AMD Ryzen™ AI Max+ 395 (16 cores / 32 threads, up to 5.1 GHz) |
|---|---|
| GPU | Radeon™ 8060S Graphics (40-core RDNA 3.5 architecture) |
| AI NPU | XDNA 2 architecture (50 TOPS, total SoC performance up to 126 TOPS) |
| Memory (RAM) | Onboard LPDDR5X 8000MHz (64GB or 128GB options) |
| Primary Storage (ROM) | PCIe 4.0 M.2 2280 SSD (1TB, 2TB or 4TB options) |
| Internal Storage Expansion | Dual M.2 2280 slots (supports up to 8TB each, total 16TB) |
| Video Output | HDMI 2.1, DisplayPort 1.4, USB4 (Max 7680×4320 @ 60Hz) |
| Network | WiFi 7 (RZ717 MT7925), 1x RJ45 Gigabit LAN (2.5G, 8125BG) |
| Bluetooth | Bluetooth 5.4 |
| Power Supply | DC 19.5V, 11.8A (~230.1W) |

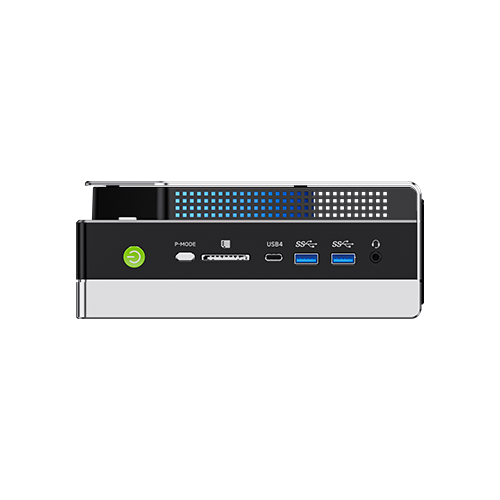

| Front Panel I/O | 2x USB-A 3.2 Gen2, 1x Audio Combo (3.5mm), 1x USB Type-C (USB4.0), 1x SD Card Reader (SD4.0) |

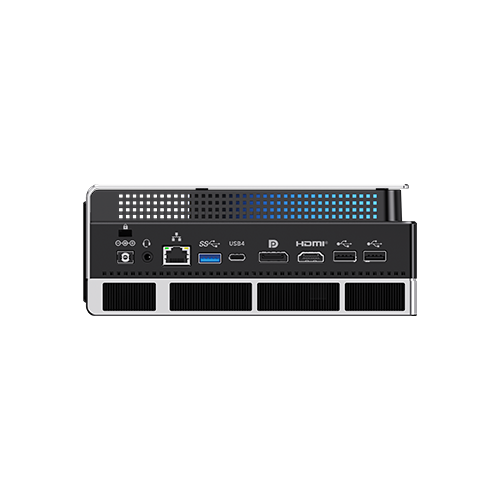

| Rear Panel I/O | 1x DisplayPort 1.4, 1x HDMI 2.1, 1x USB-A 3.2 Gen2, 2x USB-A 2.0, 1x USB Type-C (USB4.0), 1x Audio (3.5mm), 1x DC IN, 1x RJ45 Gigabit LAN (2.5G) |
| Operating System | Windows 11 Pro |
| Dimensions (L x W x H) | 193 mm x 185.8 mm x 77 mm |
| Variant |
64GB RAM + 1TB SSD ,128GB RAM + 2TB SSD |
|---|
